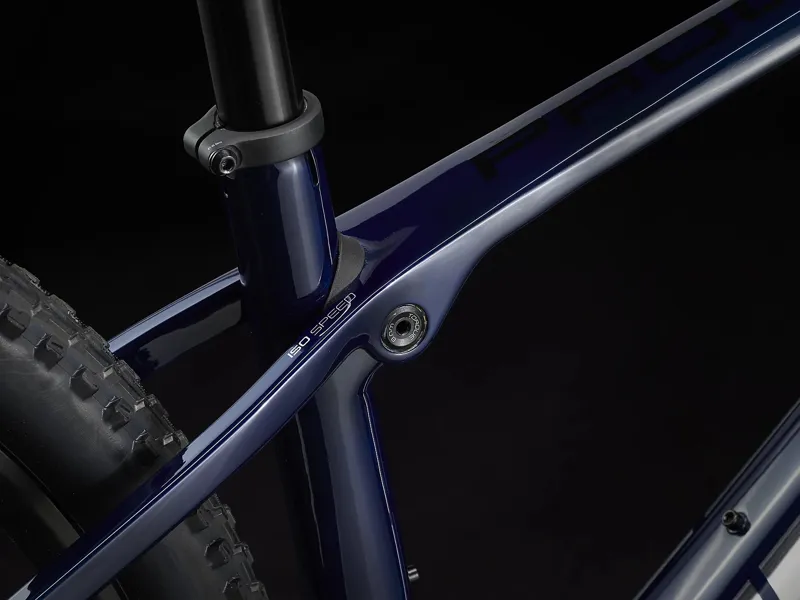

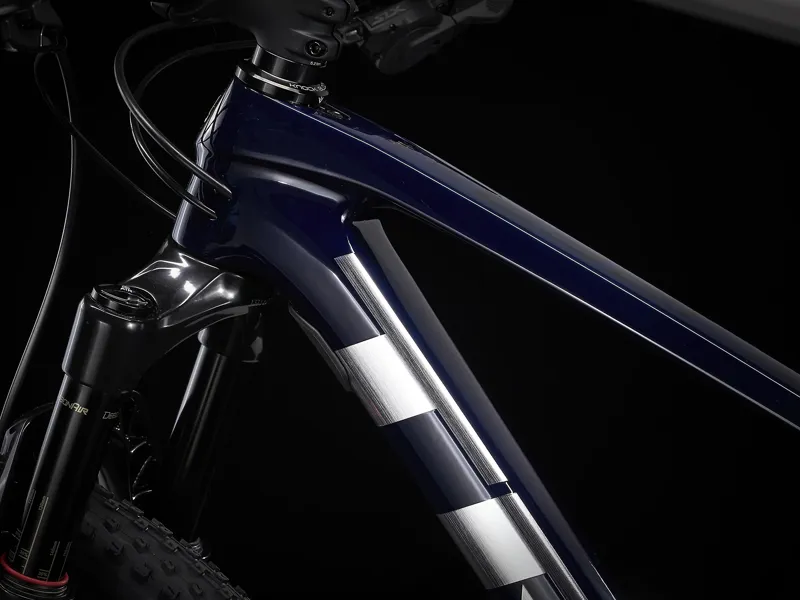

Frame
OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post-mount brake, Boost148
Fork
RockShox Recon Gold RL, DebonAir spring, Motion Control damper, remote lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel
Max compatible fork travel
110mm (515 axle-to-crown)
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle

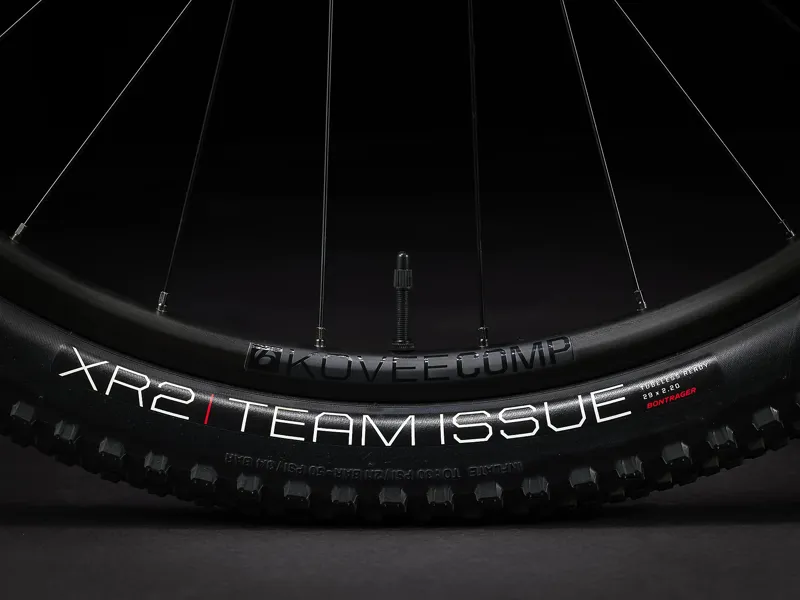

Rim
Bontrager Kovee Comp, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tyre
Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20"
Max tyre size
Frame: 29x2.40" Fork: See manufacturer
Shifter
Shimano SLX M7100, 12-speed

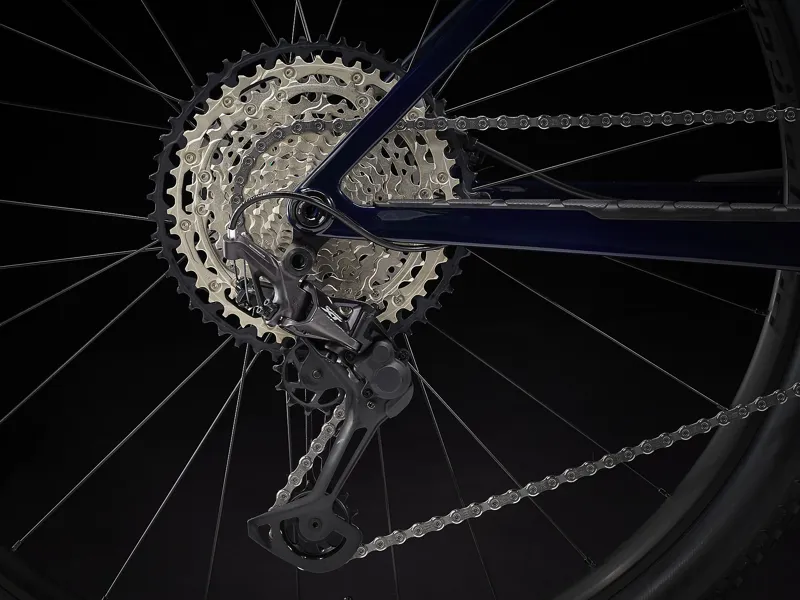

Rear derailleur
Shimano XT M8100, long cage, 51T max cog

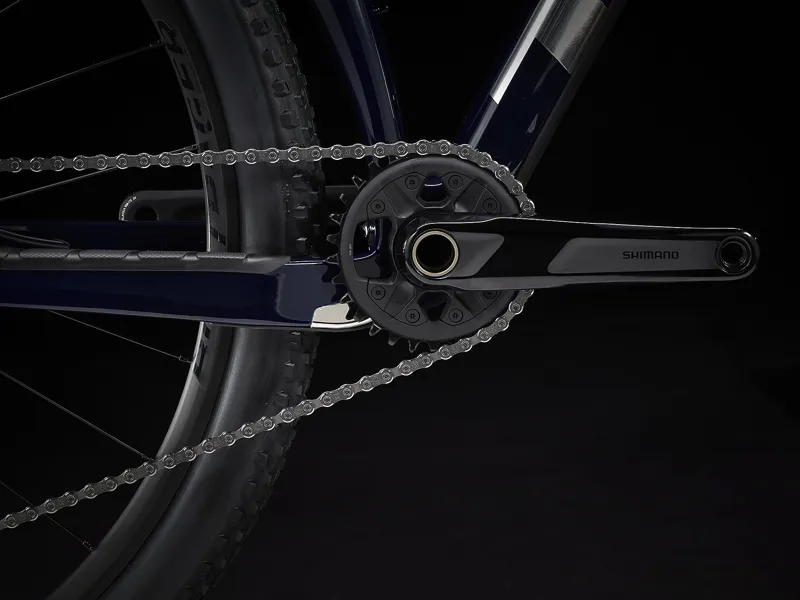

Crank
Size: S, Shimano MT611, 30T steel ring, alloy spider, Boost, 170 mm length
Size: M/ML/L/XL/XXL, Shimano MT611, 30T steel ring, alloy spider, Boost, 175 mm length
Bottom bracket
Shimano MT500, 92 mm, PressFit
Cassette
Shimano SLX M7100, 10-51, 12-speed
Chain
Shimano Deore M6100
Max. chainring size
36T, Min 30T
Saddle
Bontrager Arvada, hollow chromoly rails, 138 mm width
Seatpost
Size: S, Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 330mm length
Size: M/ML/L/XL/XXL, Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 400 mm length

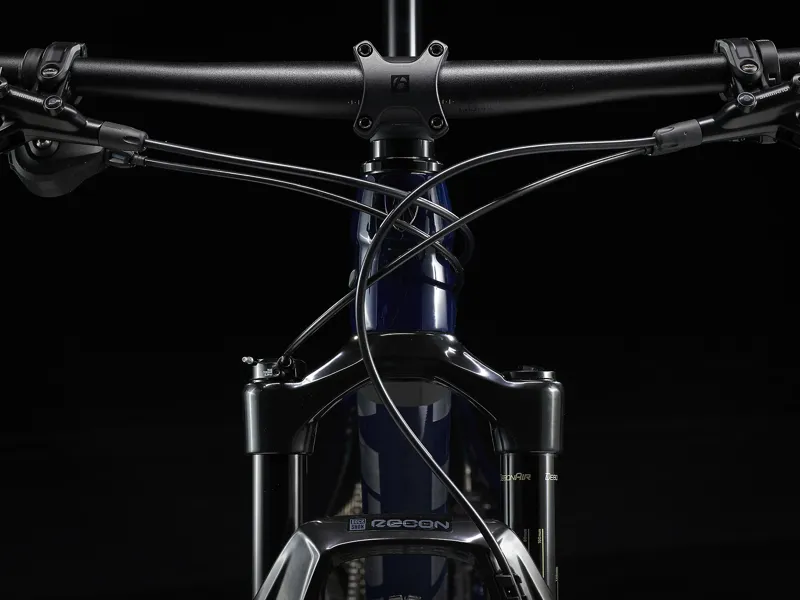

Handlebar
Size: S/M/ML, Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width
Size: L/XL, Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
Size: XXL, Bontrager Line, alloy, 35 mm, 15 mm rise, 750 mm width
Grips
Size: S/M/ML/L/XL/XXL, Herrmans Clik
Size: S/M/ML/L/XL/XXL, Bontrager XR Trail Comp, nylon lock-on
Stem
Size: S/M, Bontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 60 mm length
Size: ML, Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 70 mm length
Size: L/XL, Bontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 80 mm length
Size: XXL, Bontrager Elite, 35 mm, 0-degree, 90 mm length

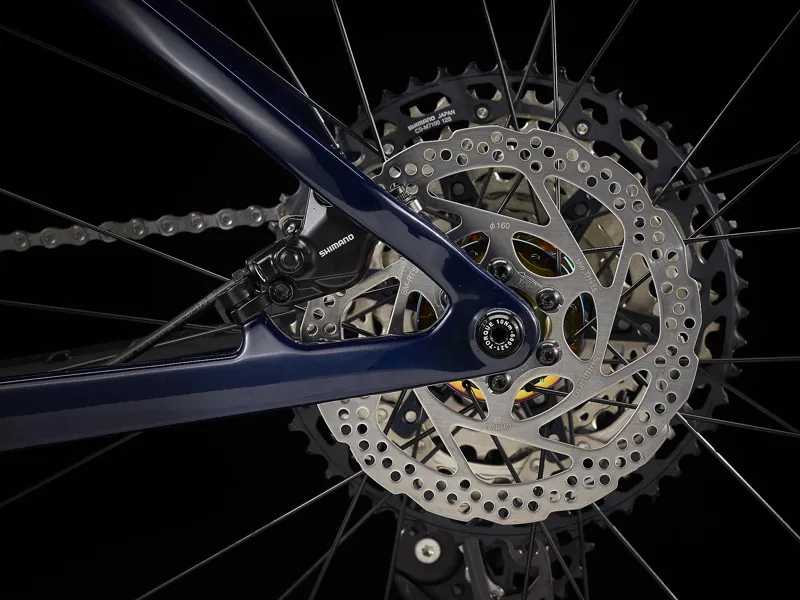

Brake
Shimano hydraulic disc, MT4100 lever, MT410 calliper
Brake rotor
Size: S/M/ML/L/XL/XXL, Shimano RT56, 6-bolt, 180 mm
Size: S/M/ML/L/XL/XXL, Shimano RT56, 6-bolt, 160 mm
Weight
M - 25.07 lbs / 11.37 kg (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
