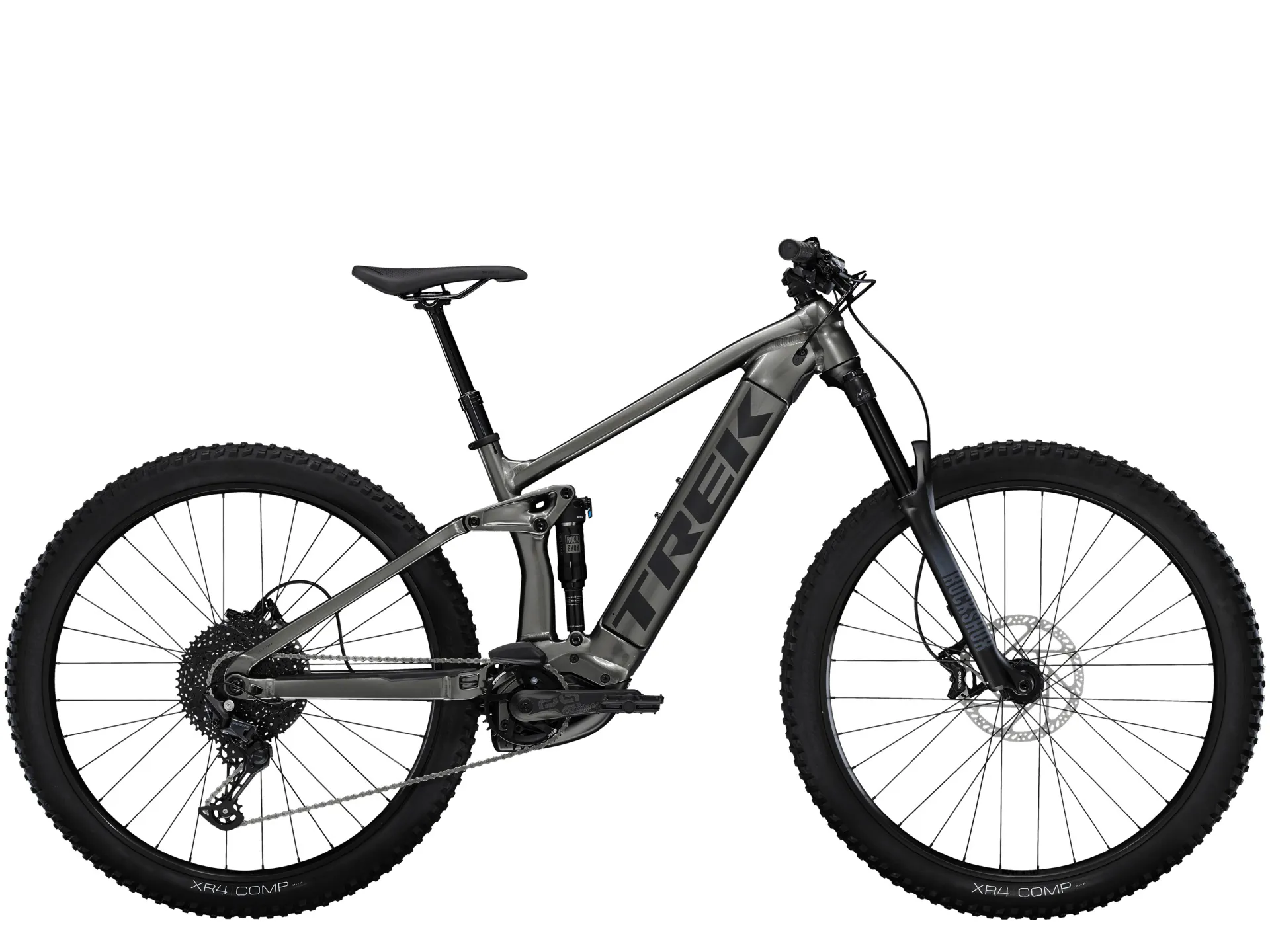

Trek Rail 5 Deore 625w Electric Mountain Bike in Mercury

Season:2023

Brand:Trek

Code:36990Mercury

The Rail 5 625 is an electric mountain bike built for ripping the big stuff.

It features the same high-end trail tech as our analogue trail bikes, plus a powerful Bosch drive system that's basically like having your own shuttle.
Technical Information
  • Frame
  • Size:S
    Alpha Platinum Aluminium, curved top tube, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
  • Size:M, L, XL
    Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
  • Fork
    RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel
  • Shock
    RockShox Deluxe Select+ RT, 230mm x 57.5mm
  • Max compatible fork travel
    170mm (580mm axle-to-crown)
  • Hub front
    Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
  • Hub rear
    Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Rim
    Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
  • Tyre
    Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
  • Max tyre size
    Frame: 29x2.60", Fork: See manufacturer
  • Shifter
    Shimano Deore M6100, 12-speed
  • Rear derailleur
    Shimano Deore M6100, long cage
  • Crank
    E*thirteen E*spec Plus, 165 mm length
  • Chainring
    E*thirteen E*spec, 34T alloy, 55 mm chainline
  • Cassette
    SunRace CSMZ800 11-51, 12 speed
  • Chain
    Shimano Deore M6100
  • Pedal
    VP-536 nylon platform
  • Max. chainring size
    1x: 34T
  • Saddle
    Bontrager Arvada, steel rails, 138 mm width
  • Seatpost
  • Size:S
    TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
  • Size:M, L, XL
    TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
  • Handlebar
    Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
  • Grips
    Bontrager XR Trail Comp, nylon lock-on
  • Stem
    Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
  • Brake
  • Size:S, M, L, XL
    Tektro HD-M745 hydraulic disc
  • Size:S, M, L, XL
    Tektro HD-M745 4-piston hydraulic disc
  • Brake rotor
    Tektro, 6-bolt, 203 mm
  • Rotor size
    Max brake rotor sizes: Front see fork manufacturer, rear 200 mm
  • Battery
    Bosch PowerTube 625Wh, smart system
  • Charger
    Bosch standard 4A, 230V, smart system
  • Motor
    Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
  • Computer
    Bosch LED remote, smart system
Sizing Information

We know that when you're looking for a bike, you want one you can depend on. We also understand that getting the right size means you'll be more comfortable and more confident when tackling hills, roads, and trails. That's why we've made it our mission to bring you the best bikes at the best prices—and to make sure that your bike fits you perfectly. In order to do this, we've created this sizing guide so that all of our customers can find the perfect fit for their needs. Of course, we're also always here if you need any help or advice. This is a guide and is a good starting point to finding the right bike for you and often is spot-on! However, if you need help, advice, or customisation - Pedalworks is here to help!

Contact us on 01582 478070 or send us a question on our contact us form.

ROAD BIKES

Framesize47cm50cm52cm54cm56cm58cm60cm62cm
Height152-158cm158-163cm163-168cm168-174cm174-180cm180-185cm185-190cm190-195cm
Inseam71-75cm74-77cm76-79cm78-82cm81-85cm84-87cm86-90cm89-92cm


MOUNTAIN BIKES

FramesizeXSSMM/LLXL2XL
Height137-155cm153-166.5cm161-172cm165.5-179cm177-188cm186-196cm195-203cm
Inseam64-75cm72-77cm76-79cm77-82cm83-85cm87-92cm92-95cm
