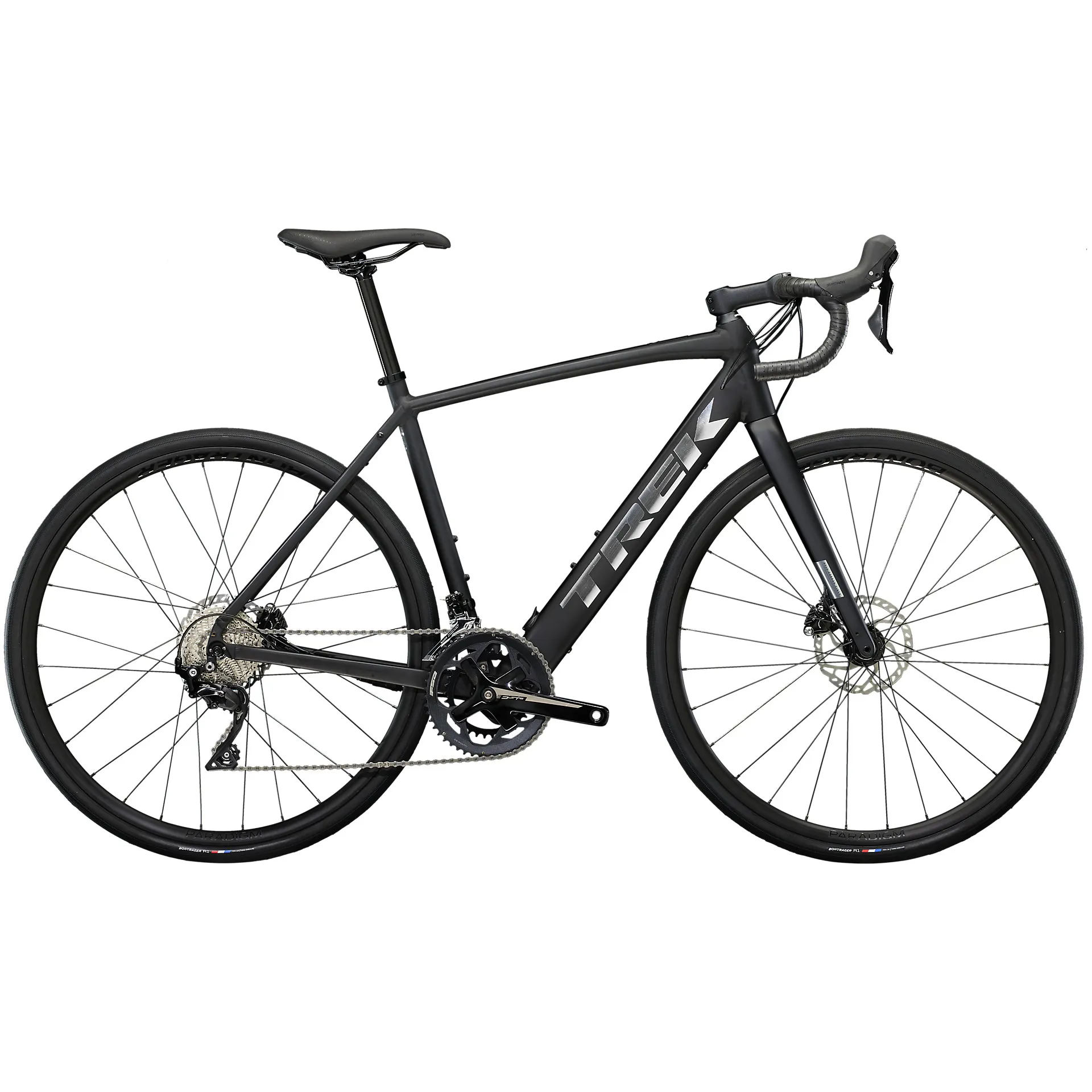

Trek Domane+ AL 5 Electric Road Bike in Trek Black

Season:2024

Brand:Trek

Code:36141BLK

The Domane+ AL 5 is a lightweight alloy e-road bike that delivers an authentic road bike feel with the benefit of an electric boost. The intuitive and natural-feeling HyDrive pedal assist system lets you keep pace with friends, crush hilly terrain or push yourself harder on training rides.

You want a high-value e-road bike that looks and rides like a traditional road bike. You’re looking for a natural-feeling boost that adds extra capability to training rides and club rides.

Trek Domane+ AL 5 Best Features

  • This e-road bike looks, rides and feels more like a traditional road bike
  • The HyDrive pedal assist system has a hub motor for a more natural ride feel
  • Easily change ride settings and see important info like speed and battery level with the intuitive HyDrive Bluetooth controller
  • The stable Endurance Geometry delivers comfort and confidence
  • Double your range with a 250 Wh plug-and-play Range Extender battery that sits in your bottle cage

A lightweight aluminium frame and fork, a natural-feeling HyDrive hub motor (250 W, 40 Nm) that assists up to 25 km/h with a 250 Wh battery for a range of up to 90 kilometres per charge. Plus a workhorse Shimano 105 2x11 drivetrain, tubeless-ready wheels and vibration-absorbing Elite IsoZone handlebars.

The Domane+ AL’s streamlined and discreet drive system lets you get more out of every ride. You get true road bike feel with the benefit of an extra boost when you want it.

Pedalworks' take:

"Looking for a lightweight alloy e-road bike that delivers an authentic road bike feel with the benefit of an electric boost? Look no further than the Domane+ AL 5! The intuitive and natural-feeling HyDrive pedal assist system lets you keep pace with friends, crush hilly terrain or push yourself harder on training rides."

Extra Product Details

  • An integrated 250 Wh battery is hidden in the downtube and a powerful yet lightweight rear hub motor gives you that extra boost on the road.
  • Clearance for 38 mm tyres boosts traction for better handling and makes for a comfortable ride on everything from smooth tarmac to light gravel.
  • Double your range with an optional 250 Wh Range Extender that can expand your ride to an average of 110 mi/177 km in Eco mode.
  • Easily toggle between the Domane+ AL’s three assist modes without taking your hands off the bars using the intuitive top-mounted controls.
Technical Information
  • Frame
    100 Series Alpha Aluminium, hub drive system, tapered head tube, internal routing, flat-mount disc, rack and mudguard mounts
  • Fork
    Domane+ carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat mount disc, 12x100 mm thru axle
  • Frame fit
    Endurance
  • Hub front
    Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12 mm thru axle
  • Skewer front
    Bontrager Switch thru axle, removable lever
  • Hub rear
    HyDrive hub drive motor, 40 Nm, 250 W
  • Rim
    Bontrager Paradigm, Tubeless Ready, 28-hole, 21 mm width, Presta valve
  • Tyre
    Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c
  • Max tyre size
    38c without mudguards, 32c with mudguards
  • Shifter
  • Size: 49, 52
    Shimano 105 R7025, short-reach lever, 11-speed
  • Size: 54, 56, 58, 61
    Shimano 105 R7020, 11-speed
  • Front derailleur
    Shimano 105 R7000, 31 mm clamp
  • Rear derailleur
    Shimano 105 R7000, long cage, 34T max cog
  • Crank
  • Size: 49
    FSA Vero Pro, 50/34, 165 mm
  • Size: 52
    FSA Vero Pro, 50/34, 170 mm
  • Size: 54, 56
    FSA Vero Pro, 50/34, 172.5 mm
  • Size: 58, 61
    FSA Vero Pro, 50/34, 175 mm
  • Bottom bracket
    Torque sensor, threaded, 110 mm spindle
  • Cassette
    Shimano 105 HG700-11, 11-34, 11-speed
  • Chain
    Shimano 105 HG601, 11-speed
  • Max. chainring size
    2x: 50/34
  • Saddle
  • Size: 49, 52
    Bontrager P3 Verse Comp, steel rails, 155 mm width
  • Size: 54, 56, 58, 61
    Bontrager P3 Verse Comp, steel rails, 145 mm width
  • Seatpost
    Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
  • Handlebar
  • Size: 49
    Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm width
  • Size: 52
    Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width
  • Size: 54, 56
    Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 42 cm width
  • Size: 58, 61
    Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 44 cm width
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Stem
  • Size: 49
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
  • Size: 52, 54
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
  • Size: 56, 58
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
  • Size: 61
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
  • Brake rotor
    Shimano RT66, 6-bolt, 160 mm
  • Rotor size
    Max brake rotor sizes: 160 mm front and rear
  • Battery
    250 Wh
  • Charger
    2A, 42V output, 100V–240V AC input
  • Controller
    Top-mounted buttons
  • Weight
    56 - 14.06 kg / 31 lbs
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
Sizing Information

We know that when you're looking for a bike, you want one you can depend on. We also understand that getting the right size means you'll be more comfortable and more confident when tackling hills, roads, and trails. That's why we've made it our mission to bring you the best bikes at the best prices—and to make sure that your bike fits you perfectly. In order to do this, we've created this sizing guide so that all of our customers can find the perfect fit for their needs. Of course, we're also always here if you need any help or advice. This is a guide and is a good starting point to finding the right bike for you and often is spot-on! However, if you need help, advice, or customisation - Pedalworks is here to help!

Contact us on 01582 478070 or send us a question on our contact us form.

ROAD BIKES

Framesize47cm50cm52cm54cm56cm58cm60cm62cm
Height152-158cm158-163cm163-168cm168-174cm174-180cm180-185cm185-190cm190-195cm
Inseam71-75cm74-77cm76-79cm78-82cm81-85cm84-87cm86-90cm89-92cm


MOUNTAIN BIKES

FramesizeXSSMM/LLXL2XL
Height137-155cm153-166.5cm161-172cm165.5-179cm177-188cm186-196cm195-203cm
Inseam64-75cm72-77cm76-79cm77-82cm83-85cm87-92cm92-95cm
