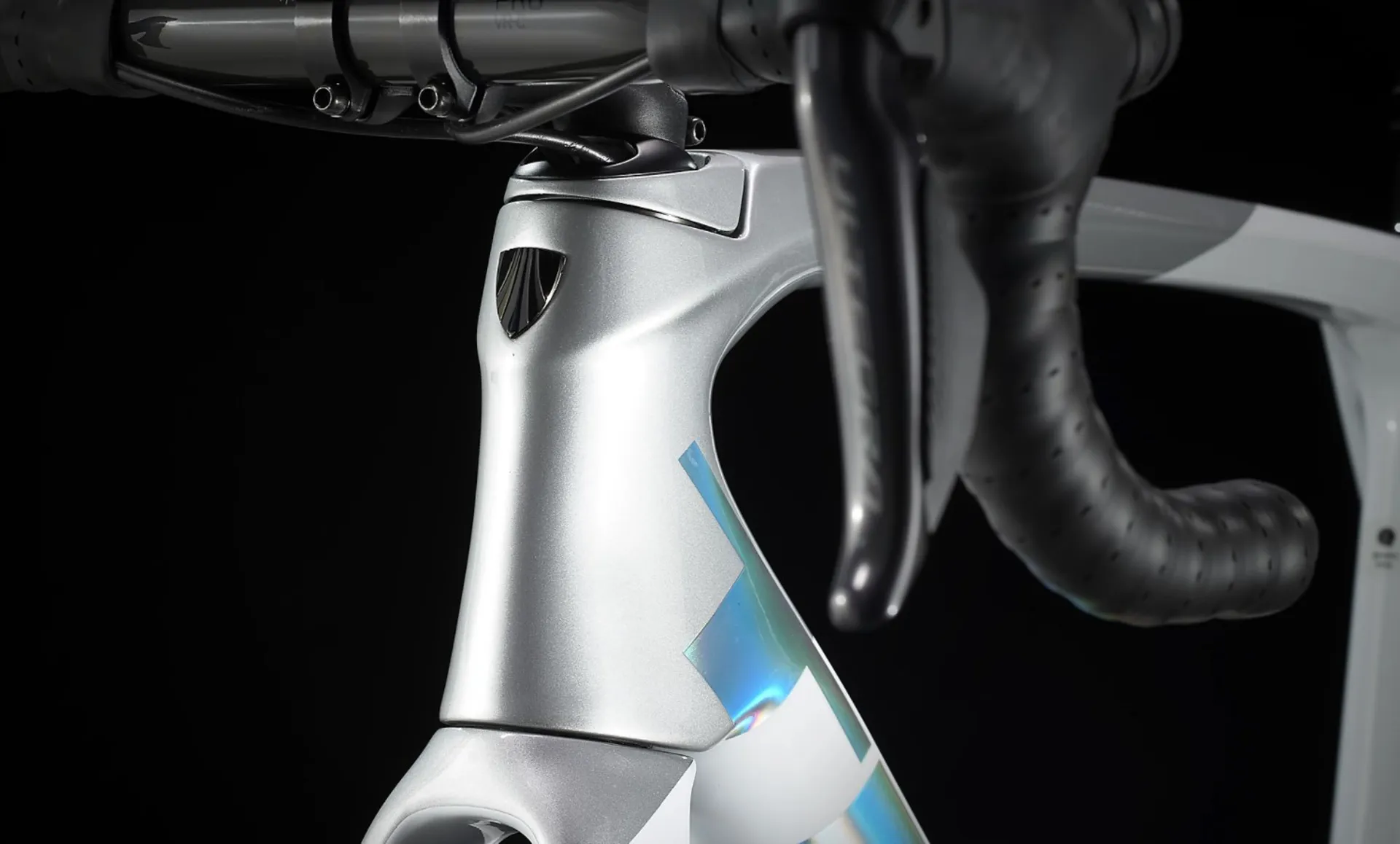

Frame
Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
Fork
Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle
Frame fit
H1.5 Race
Wheel front
Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100x12 mm thru axle
Wheel rear
Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, Shimano 11/12-speed freehub, 142x12 mm thru axle
Tyre
Bontrager R2 Hard-Case Lite, aramid bead, 60 tpi, 700x25 c
Max tyre size
30c
Front derailleur
Shimano Ultegra R8050 Di2, braze-on

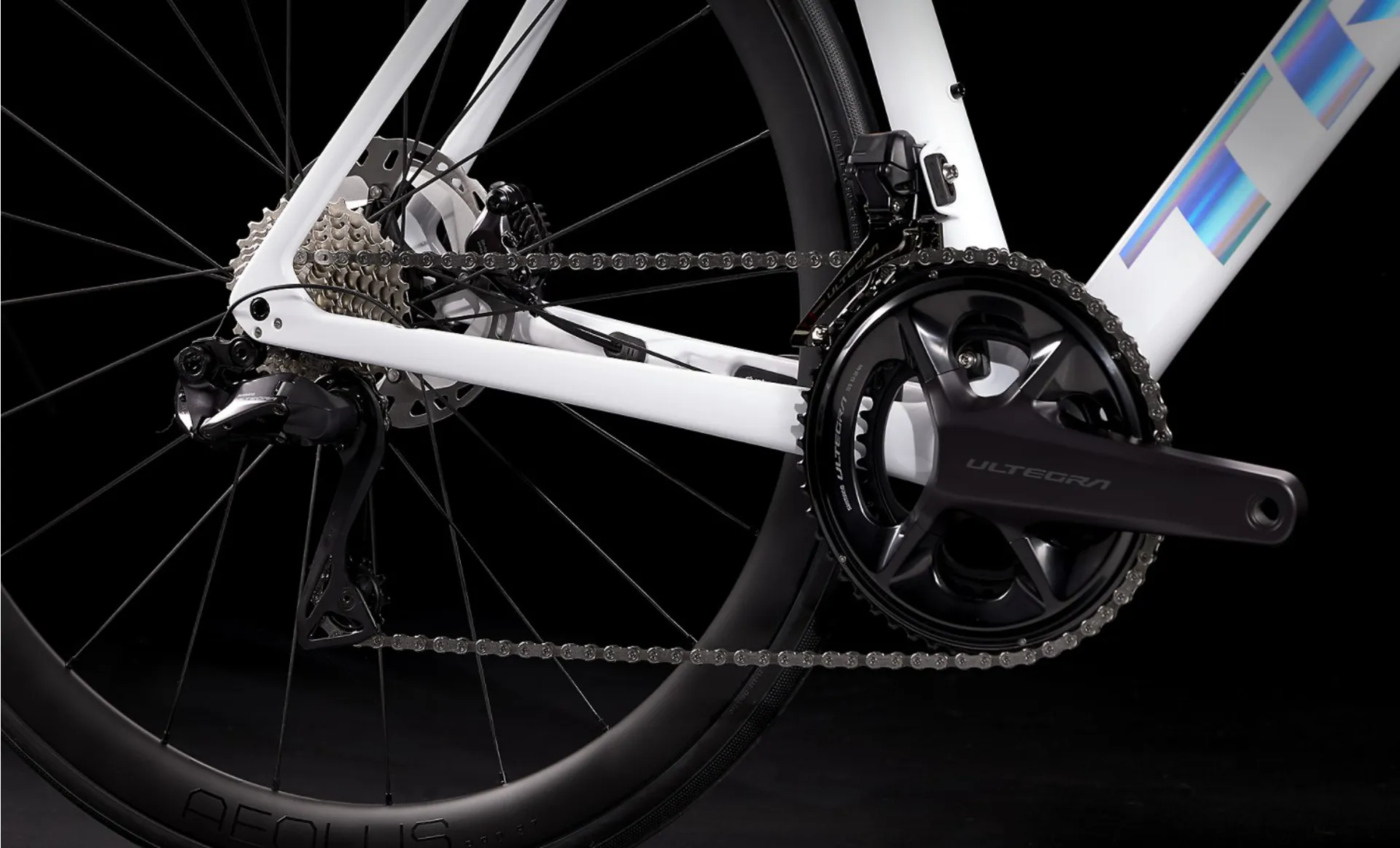

Rear derailleur
Shimano Ultegra R8050 Di2, short cage, 30T max cog
Crank
Shimano Ultegra R8000, 52/36, 172.5 mm length
Bottom bracket
Praxis, T47 threaded, internal bearing
Cassette
Shimano Ultegra R8000, 11-30, 11-speed
Chain
Shimano Ultegra HG701, 11-speed
Max. chainring size
1x: 50T, 2x: 53/39T
Saddle
Bontrager Aeolus Comp, steel rails, 145 mm width

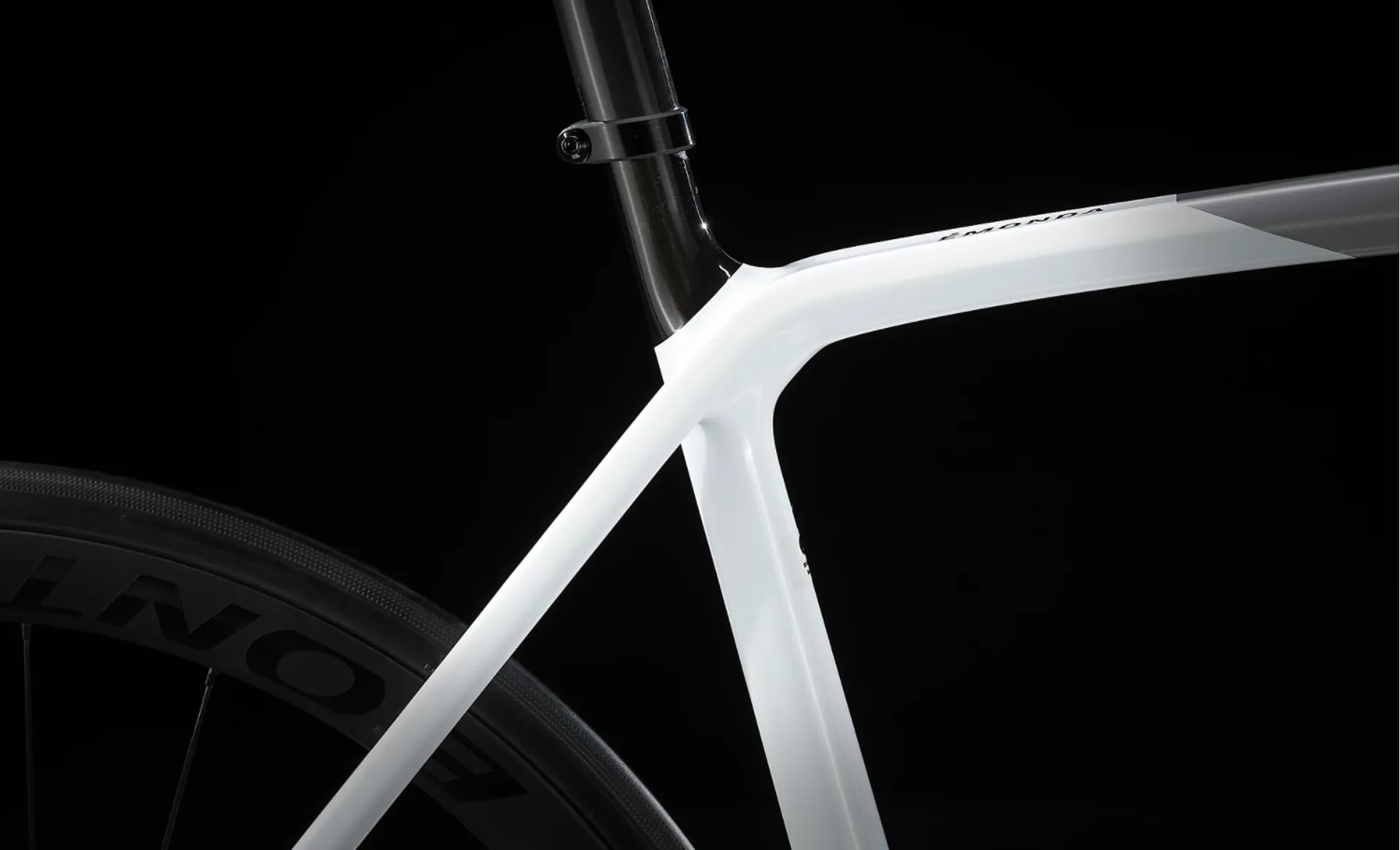

Seatpost
Size: 54, Bontrager carbon seat mast cap, 20 mm offset, short length
Size: 56, Bontrager carbon seat mast cap, 20 mm offset, tall length

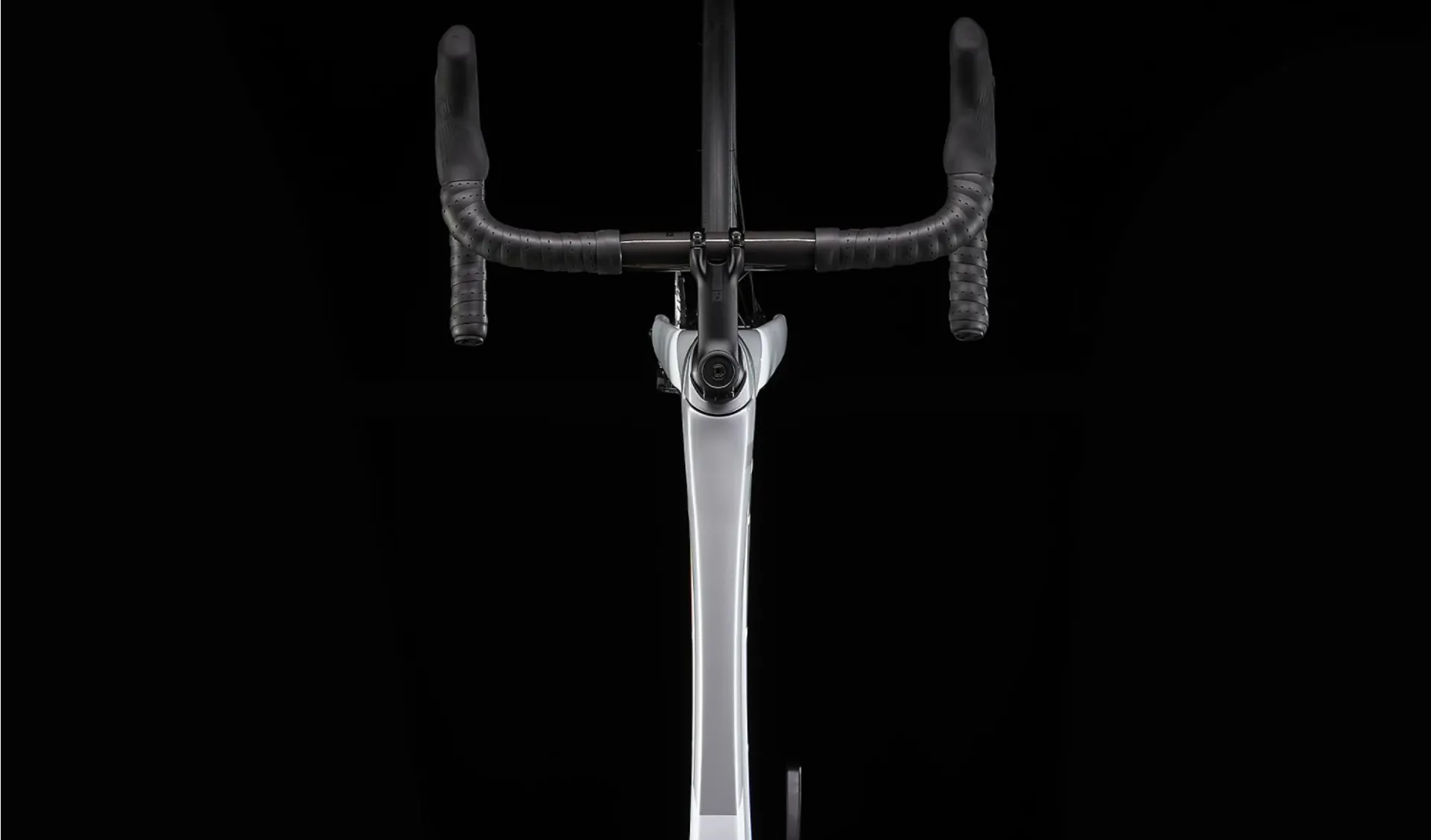

Handlebar
Bontrager Pro VR-C, OCLV Carbon, 31.8 mm, Di2 routing, 100 mm reach, 124 mm drop, 42 cm width
Handlebar tape
Bontrager Supertack Perf tape

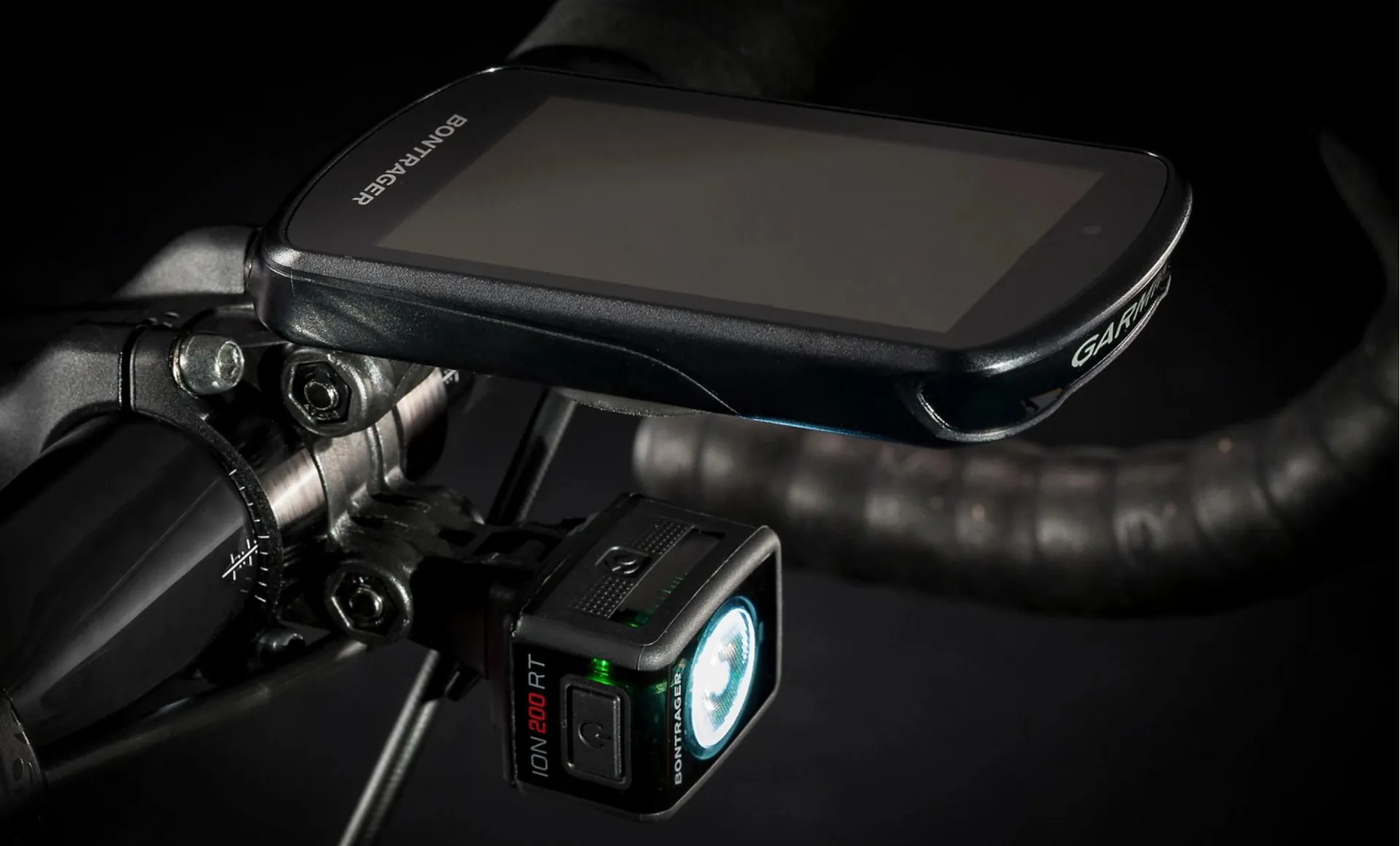

Stem
Size: 54, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 56, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length

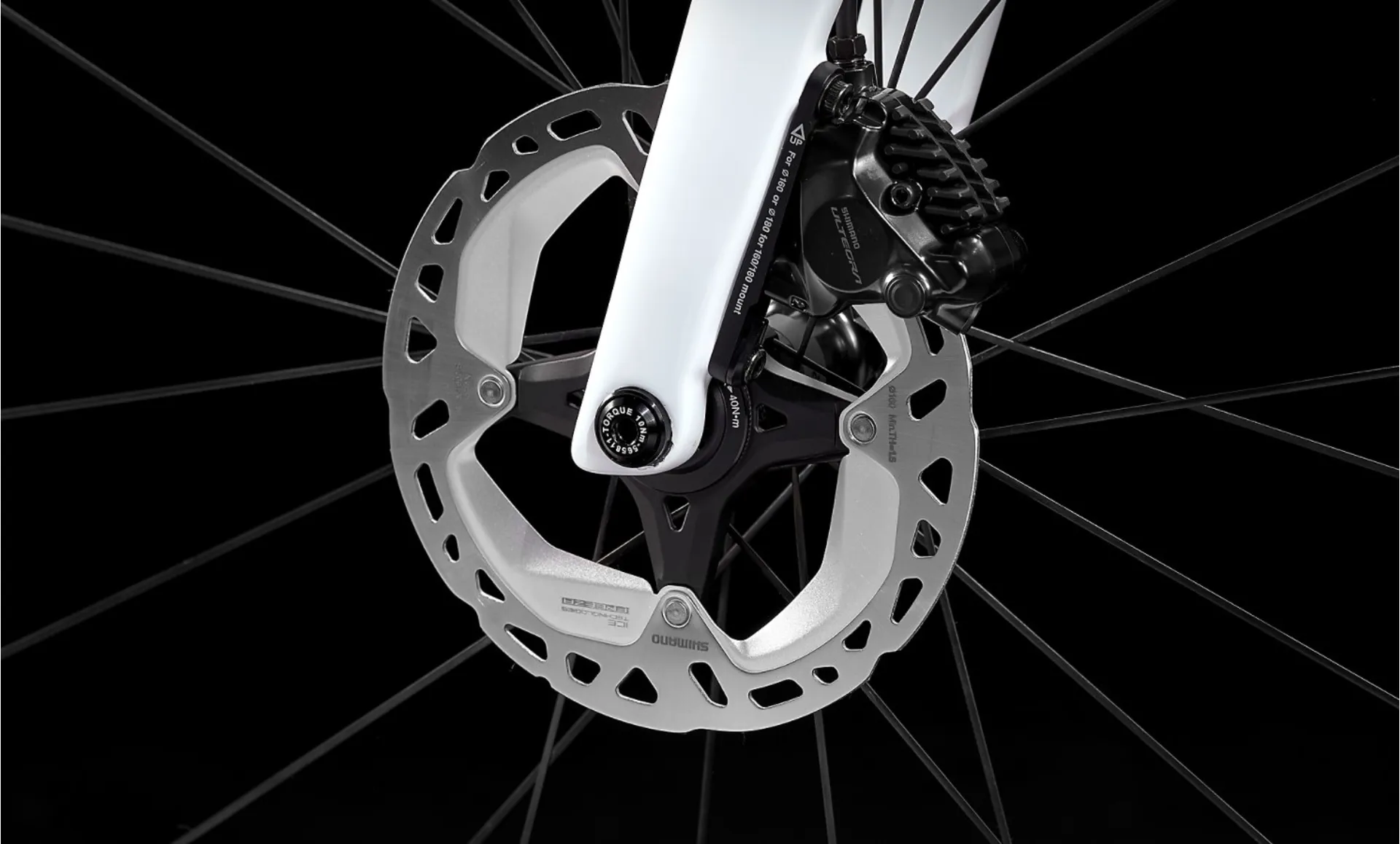

Brake
Shimano Ultegra hydraulic disc
Brake rotor
Shimano RT800, CenterLock, 160 mm
Weight
56 - 7.74 kg / 17.06 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
