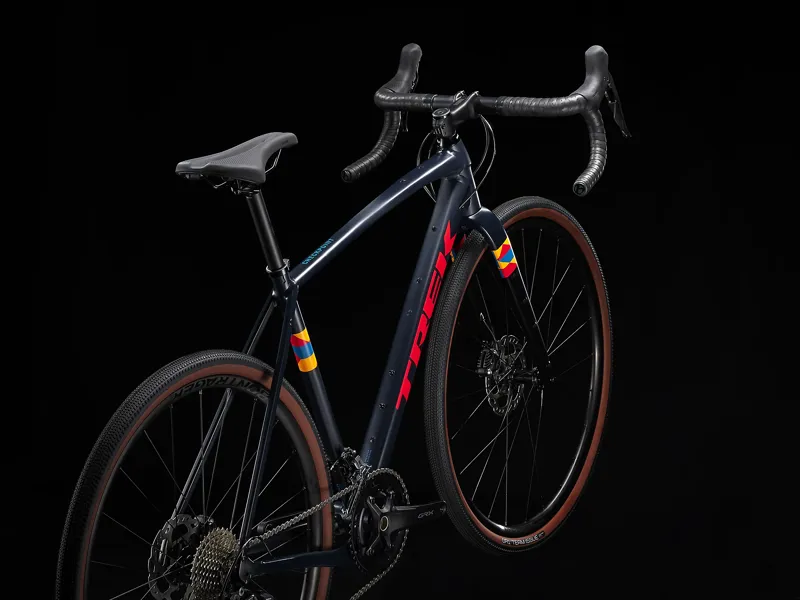

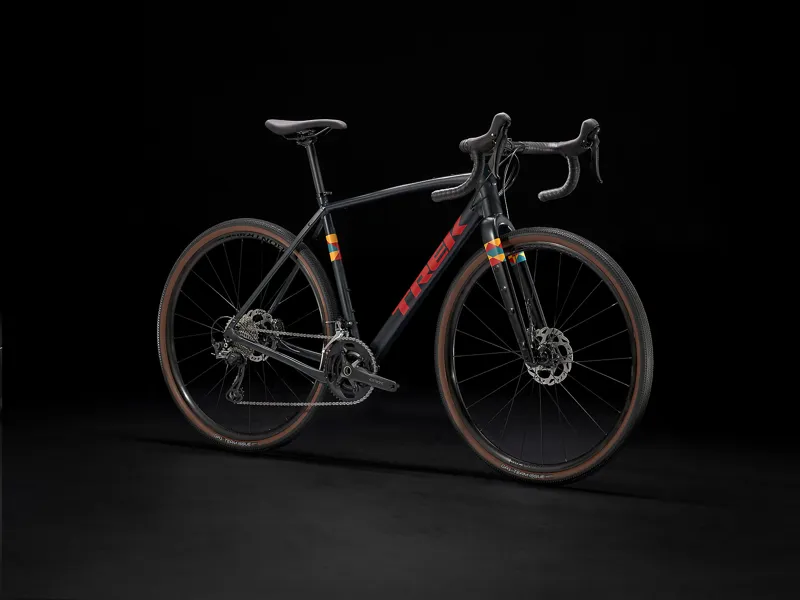

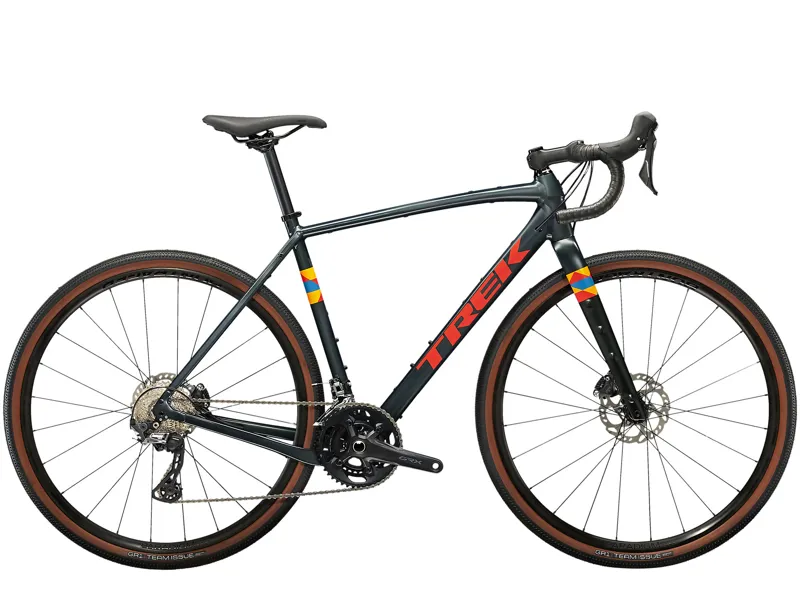

Trek Checkpoint ALR 5 Gravel Bike in Nautical Navy/Red

Season:2023

Brand:Trek

Code:35172SATNauticalNVYSATRED

Checkpoint ALR 5 is the best value gravel bike in the line-up. It's a high-quality build that will hold up for long, rugged miles on roads, dirt and even the most treacherous gravel. A wealth of features like nimble-yet-stable progressive geometry, loads of mounts, plus a GRX drivetrain make it easy to customise for your kind of adventure.

Unlike the pure roadie who measures watts and weighs out meals, you favour epic off-road adventures that probably end with a beer and a bag of chips. But that doesn't mean you'll compromise on performance. You expect to get a lot for your hard-earned money, including quality, versatility, durability and a ridiculous amount of fun.

Trek Checkpoint ALR 5 Best Features

  • All-new progressive geometry is quick and nimble yet keeps you stable and in control on fast, choppy descents
  • This bike is exceedingly versatile and suited to a wide variety of riding styles, including gravel rides, bike-packing and daily commutes
  • Massive tyre clearance means you can use tyres up to 45 c for extra traction and stability in any conditions

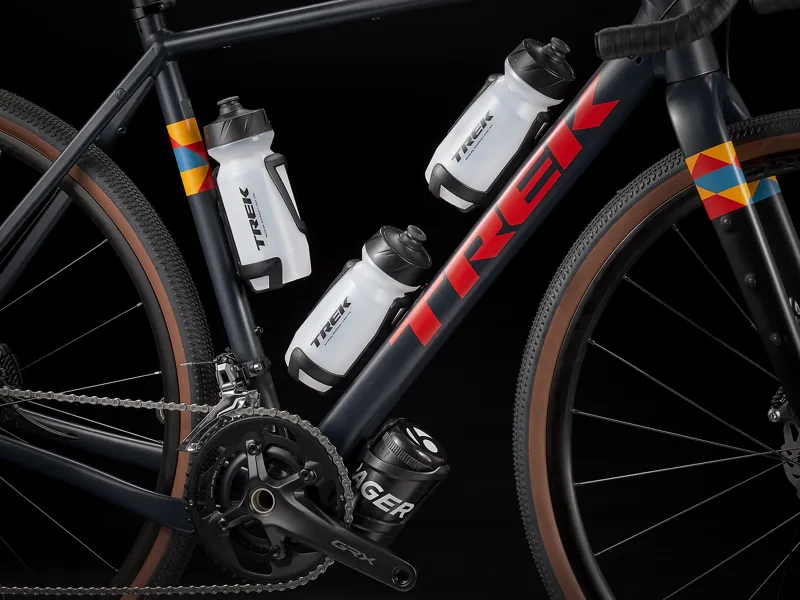

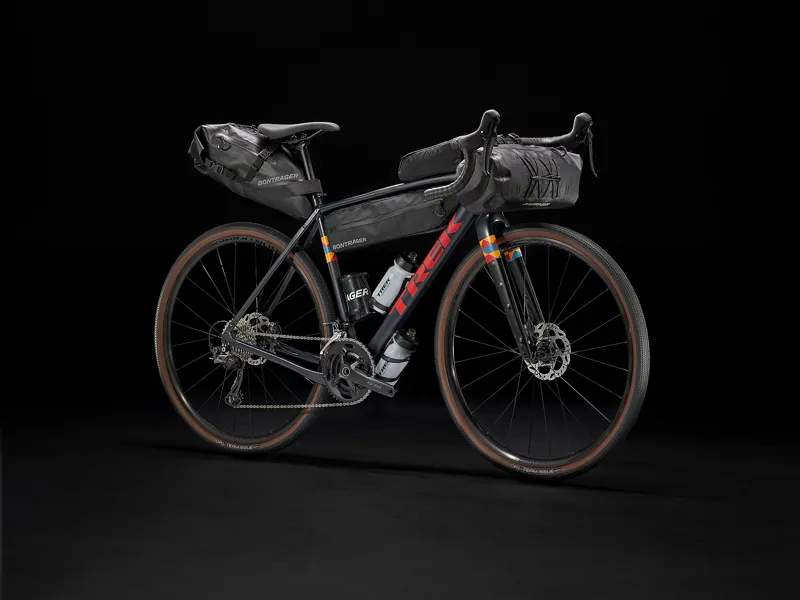

  • Integrated frame bag mounts and rack and mudguard mounts make it easy to carry gear and water
  •

A sturdy aluminium frame with a progressive geometry that's stable at speed and efficient when you're grinding up a climb, hidden cables that won't interfere with bags, rack and mudguard mounts and integrated frame bag mounts, a 2x11 Shimano GRX drivetrain with lower gears for grinding up hills or through rough gravel, hydraulic disc brakes for all-condition stopping power, tubeless-ready rims and wide 700x40c gravel tyres for added stability and traction.

If the amount of adventure you can get per pound spent is a priority for you, you won't do better than Checkpoint ALR 5. Quality parts, a durable alloy frame and a wealth of features like extra tyre clearance and customisation options – so you can confidently take on bigger, better adventures.

Pedalworks' take:

"Looking for a gravel bike that won't break the bank? Check out the Checkpoint ALR 5. It's a high-quality build that will hold up for long, rugged miles on roads, dirt and even the most treacherous gravel. A wealth of features like nimble-yet-stable progressive geometry, loads of mounts, plus a GRX drivetrain make it easy to customise for your kind of adventure."

Extra Product Details

  • For quick, nimble handling that still keeps you stable and in control on rougher descents.
  • Lots of clearance means you can run meatier tyres (700x45 mm or 27.5x2.1") for tackling chunkier gravel and terrain.
  • Integrated frame bag and mudguard mounts make it easy to carry gear and water.
Technical Information
  • Frame

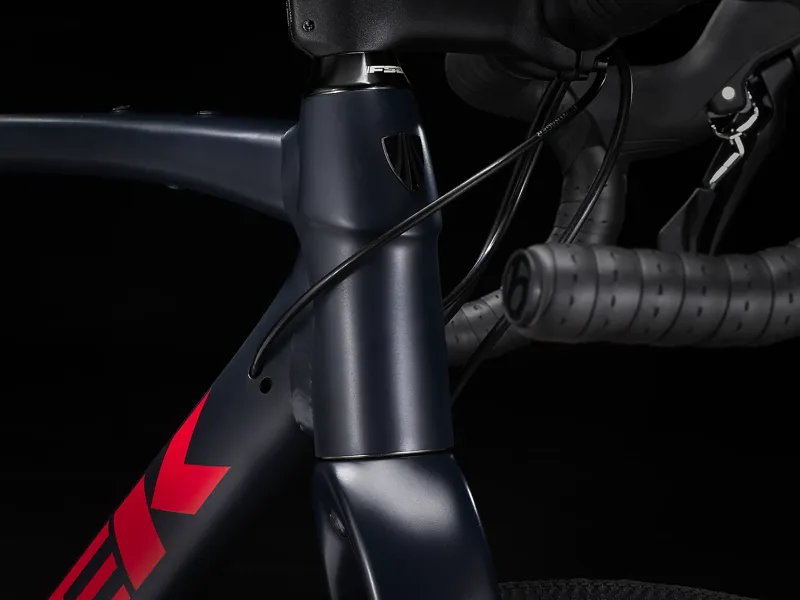

    300 Series Alpha Aluminium, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm thru-axle
  • Fork

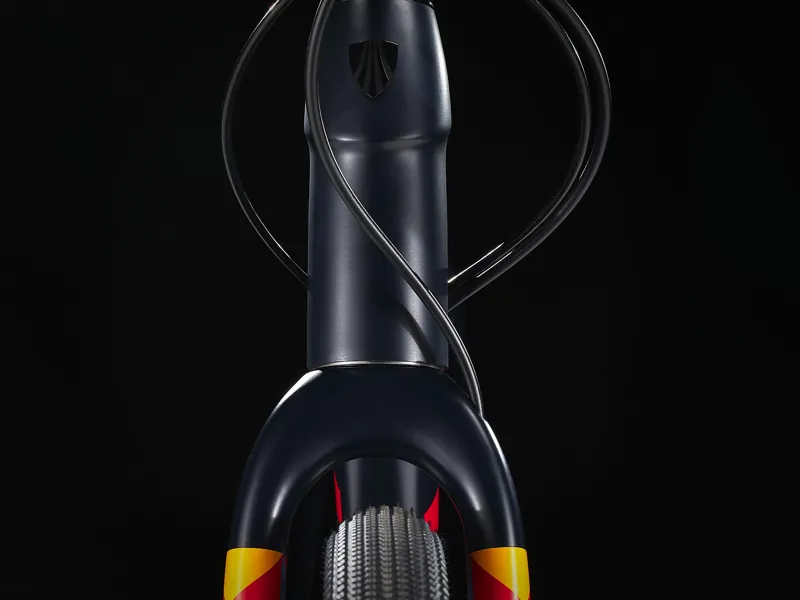

    Checkpoint, carbon legs, tapered alloy steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
  • Frame fit
    Gravel
  • Hub front
    Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
  • Skewer front
    Bontrager Switch thru axle, removable lever
  • Hub rear
    Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Rim
    Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
  • Spokes
    14 g stainless steel
  • Tyre
    Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 c
  • Tyre part
    Size: 49/52/54/56/58/61, Bontrager TLR sealant, 180 ml/6 oz
    Size: 49/52/54/56/58/61, Bontrager XXX TLR valve, 50 mm
  • Rim strip
    Bontrager Aeolus XXX rim strip
  • Max tyre size
    700x45c / 650x2.1" Bontrager tires
  • Shifter
    Shimano GRX RX600, 11-speed
  • Front derailleur
    Shimano GRX RX810, braze-on
  • Rear derailleur
    Shimano GRX RX810, long cage, 34T max cog

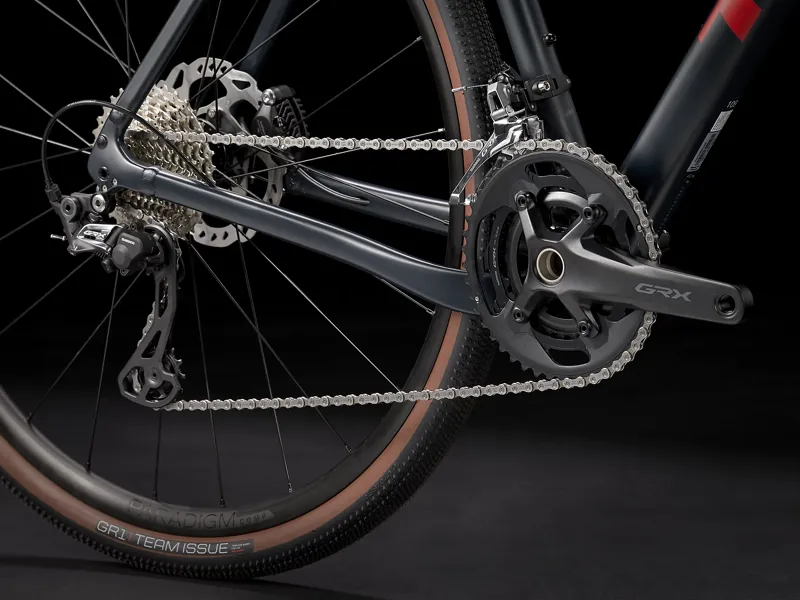

  • Crank
    Size: 49, Shimano GRX RX600, 46/30, 165 mm length
    Size: 52, Shimano GRX RX600, 46/30, 170 mm length
    Size: 54/56, Shimano GRX RX600, 46/30, 172.5 mm length
    Size: 58/61, Shimano GRX RX600, 46/30, 175 mm length
  • Bottom bracket
    Praxis, T47 threaded, internal bearing
  • Cassette
    Shimano 105 HG700-11, 11-34, 11-speed
  • Chain
    Shimano HG601
  • Max. chainring size
    1x: 44T SRAM or 50T Shimano, 2x: 50/34
  • Saddle
    Size: 49/52, Bontrager P3 Verse Comp, steel rails, 155 mm width
    Size: 54/56/58/61, Bontrager P3 Verse Comp, steel rails, 145 mm width
  • Seatpost
    Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

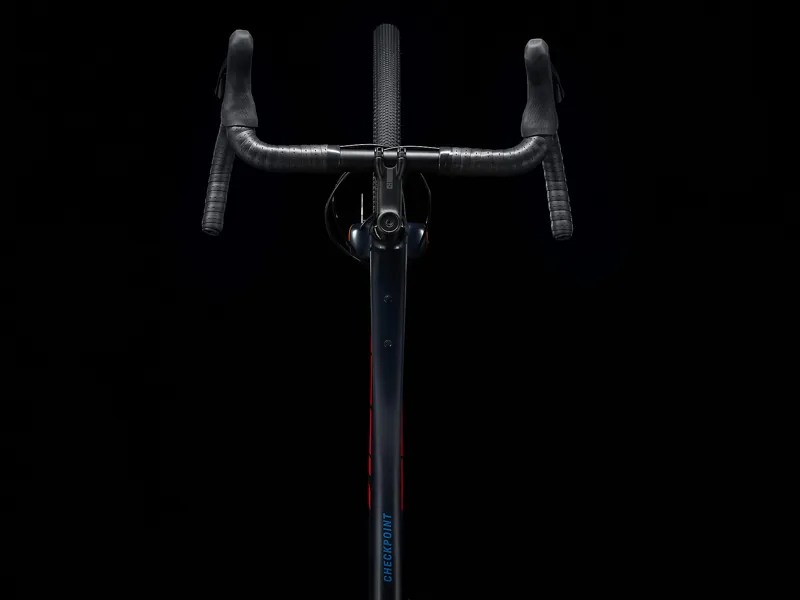

  • Handlebar
    Size: 49, Bontrager Elite Gravel, 38 cm width
    Size: 52, Bontrager Elite Gravel, 40 cm width
    Size: 54/56, Bontrager Elite Gravel, 42 cm width
    Size: 58/61, Bontrager Elite Gravel, 44 cm width
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Stem

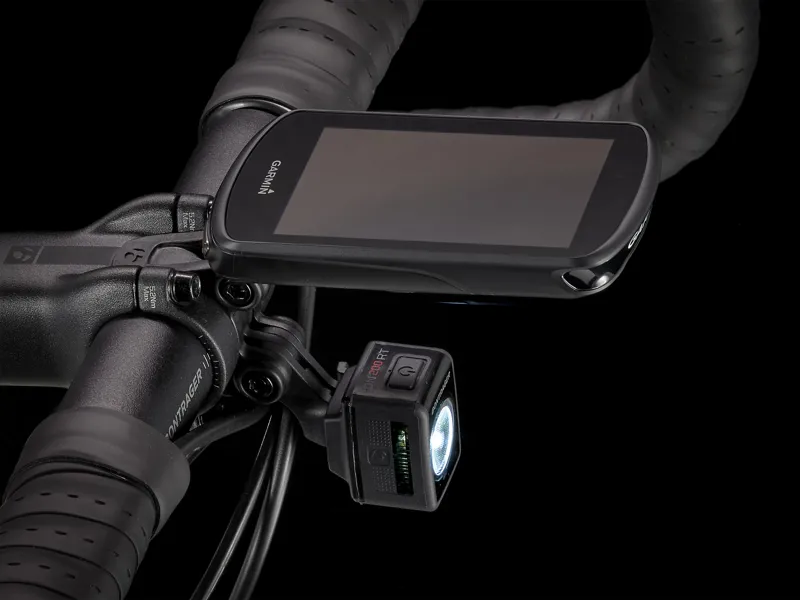

    Size: 49, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
    Size: 52/54, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
    Size: 56/58, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
    Size: 61, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
  • Head set
    FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom

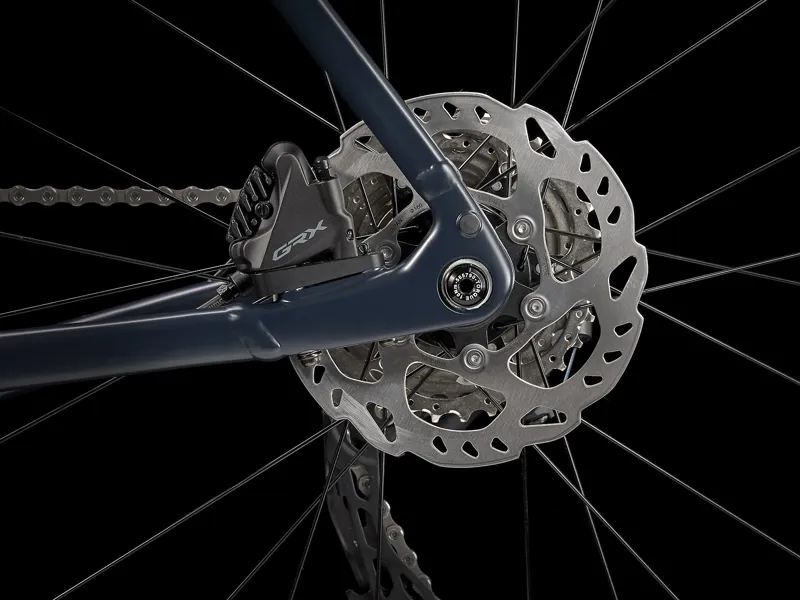

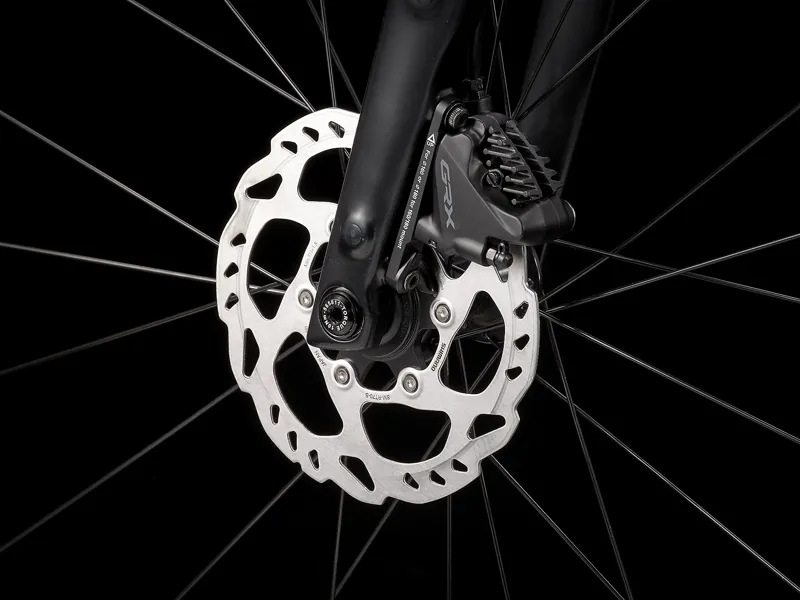

  • Brake rotor
    Shimano SM-RT70, CenterLock, 160 mm
  • Weight
    56 - 21.50 lbs / 9.75 kg
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Sizing Information

We know that when you're looking for a bike, you want one you can depend on. We also understand that getting the right size means you'll be more comfortable and more confident when tackling hills, roads, and trails. That's why we've made it our mission to bring you the best bikes at the best prices—and to make sure that your bike fits you perfectly. In order to do this, we've created this sizing guide so that all of our customers can find the perfect fit for their needs. Of course, we're also always here if you need any help or advice. This is a guide and is a good starting point to finding the right bike for you and often is spot-on! However, if you need help, advice, or customisation - Pedalworks is here to help!

Contact us on 01582 478070 or send us a question on our contact us form.

ROAD BIKES

Framesize47cm50cm52cm54cm56cm58cm60cm62cm
Height152-158cm158-163cm163-168cm168-174cm174-180cm180-185cm185-190cm190-195cm
Inseam71-75cm74-77cm76-79cm78-82cm81-85cm84-87cm86-90cm89-92cm


MOUNTAIN BIKES

FramesizeXSSMM/LLXL2XL
Height137-155cm153-166.5cm161-172cm165.5-179cm177-188cm186-196cm195-203cm
Inseam64-75cm72-77cm76-79cm77-82cm83-85cm87-92cm92-95cm
