DETAILS
Platform
SuperSix EVO
Model Name

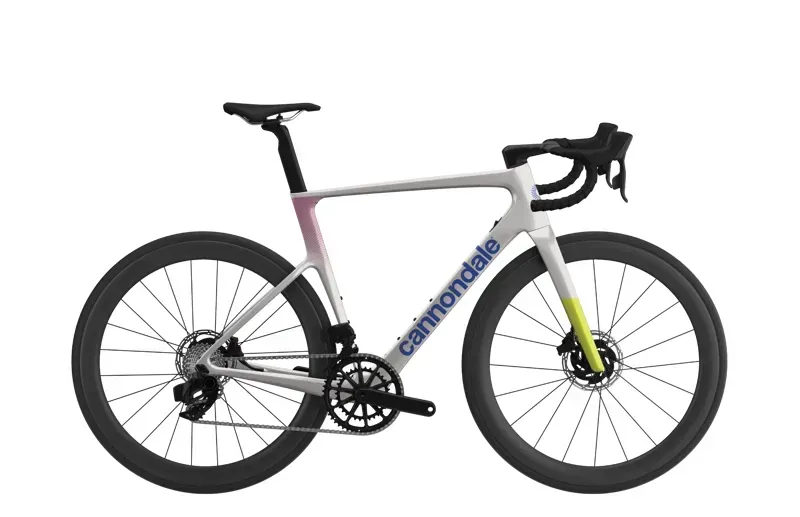

SuperSix EVO 1
Model Code
C11302U
FRAMESET
Frame
SuperSix EVO Carbon, integrated cable routing w/ Switchplate, 12x142 Syntace thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense compatible
Fork
SuperSix EVO Carbon, integrated crown race, 12x100mm Syntace thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
Headset
Integrated, 1-1/8" - 1-1/4"
DRIVETRAIN
Rear Derailleur
SRAM Force AXS
Front Derailleur
SRAM Force AXS, braze-on
Shifters
SRAM Force AXS, 12-speed
Chain
SRAM Force, 12-speed
Crank
SRAM Force, DUB, 48/35
Rear Cogs
SRAM XG-1270, 10-33, 12-speed
Bottom Bracket
SRAM DUB BSA
BRAKES
Brakes
SRAM Force AXS Hydraulic Disc, 160/160mm PaceLine Rotors
Brake Levers
SRAM Force AXS hydraulic disc
WHEELS
Rims
HollowGram R-S 50, Carbon, 20h front, 24h rear, 50mm deep, 21mm inner width, tubeless ready
Spokes
Formula Grand Forza, Double Butted, straight-pull
Tire Size
25
Wheel Size
700
Hubs
(F) HollowGram, sealed bearing 12x100mm centerlock / (R) HollowGram, 12x142mm centerlock w/ DT Swiss 350 internals
Tires
Vittoria Rubino Pro Bright Black, 700x25c, reflective strip
COMPONENTS
Handlebar
Vision Trimax Carbon Aero
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°
Grips
Cannondale Bar Tape, 3.5mm
Saddle
Prologo Dimension TiRox NDR, Titanium Rails
Seatpost
Cannondale C1 Aero 40 Carbon, 0mm offset (44-48cm), 20mm offset (51-61cm)
CONNECTIVITY
Wheel Sensor
Cannondale Wheel Sensor
EXTRA
Extra 1
SRAM AXS charger
