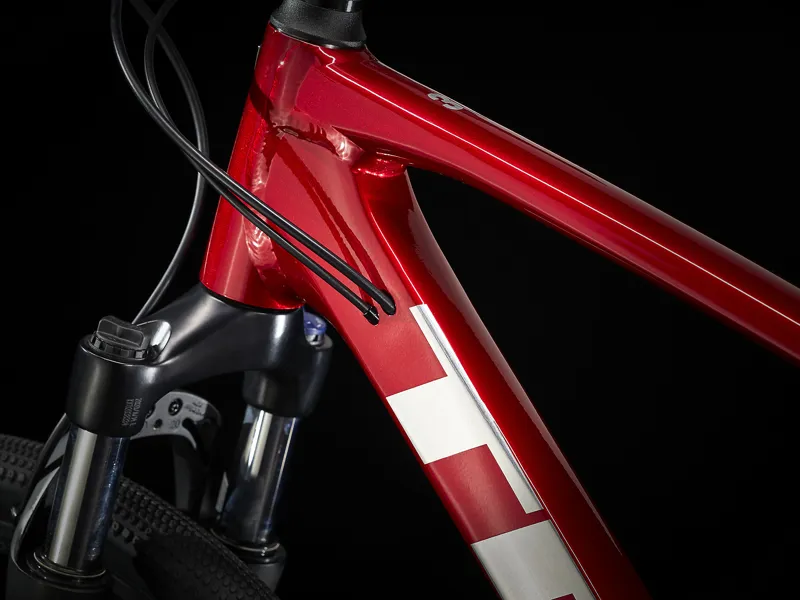

Frame
Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, rack and mudguard mounts, post-mount disc, kickstand mount, 135x5 mm QR
Fork
SR Suntour NEX, coil spring, preload, hydraulic lockout, 100x5 mm QR, 63 mm travel
Hub front
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Hub rear
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR

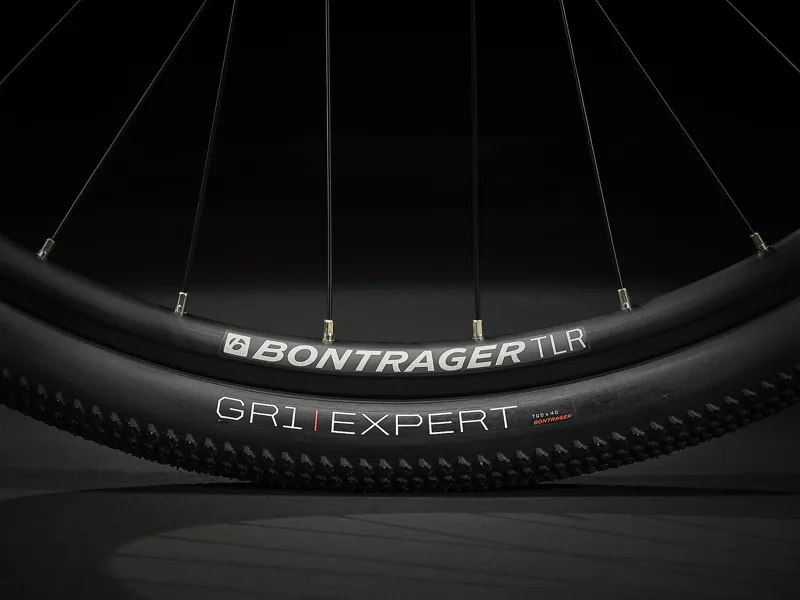

Rim
Bontrager Tubeless Ready Disc, 32-hole, Presta valve
Tyre
Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40 c
Max tyre size
Frame: 700x45c with fenders, 29x2.10" without fenders Fork: See manufacturer
Shifter
Shimano Deore M4100, 10 speed

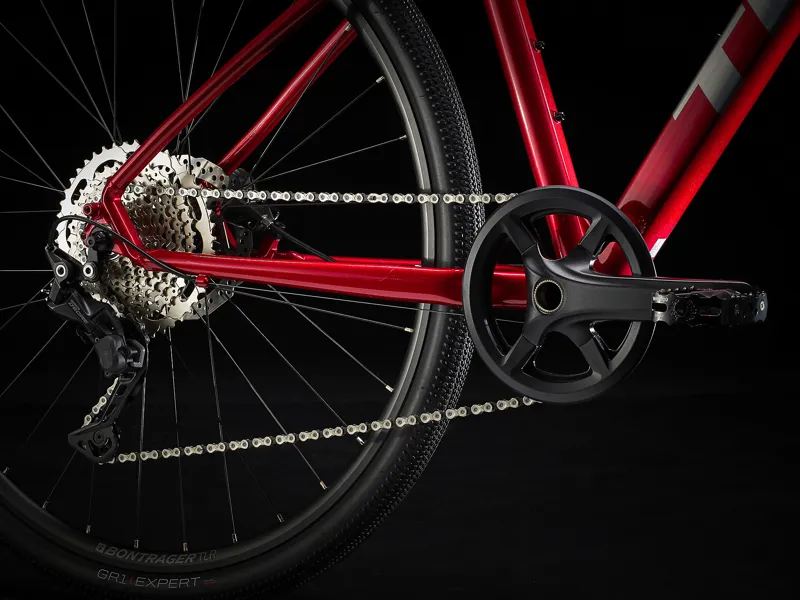

Rear derailleur
Shimano Deore M5120, long cage
Crank
Size: S/M, Prowheel alloy, 40T narrow-wide ring, 170 mm length
Size: L/XL, Prowheel alloy, 40T narrow-wide ring, 175 mm length
Cassette
Shimano Deore M4100, 11-46, 10-speed
Chain
KMC X10, 10-speed
Pedal
Wellgo M141, resin body, alloy cage

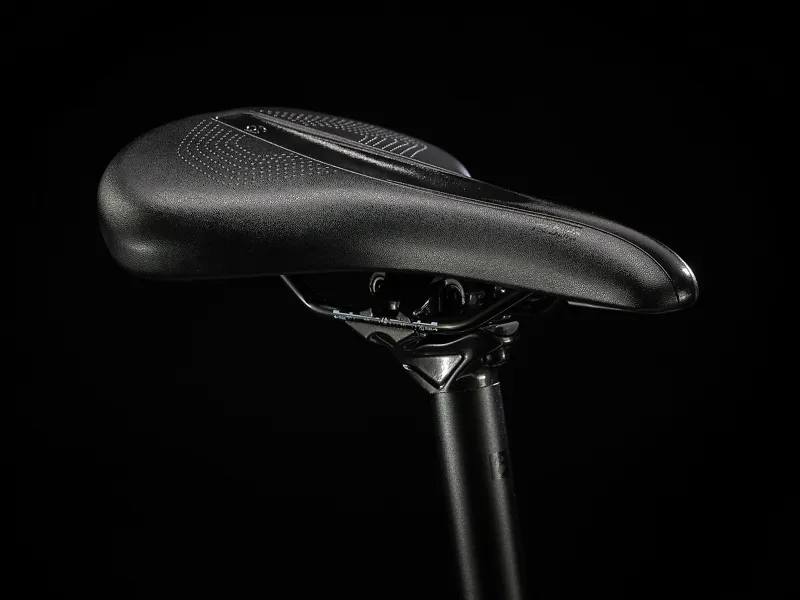

Saddle
Bontrager H1
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Handlebar
Size: S/M, Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width
Size: L/XL, Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width

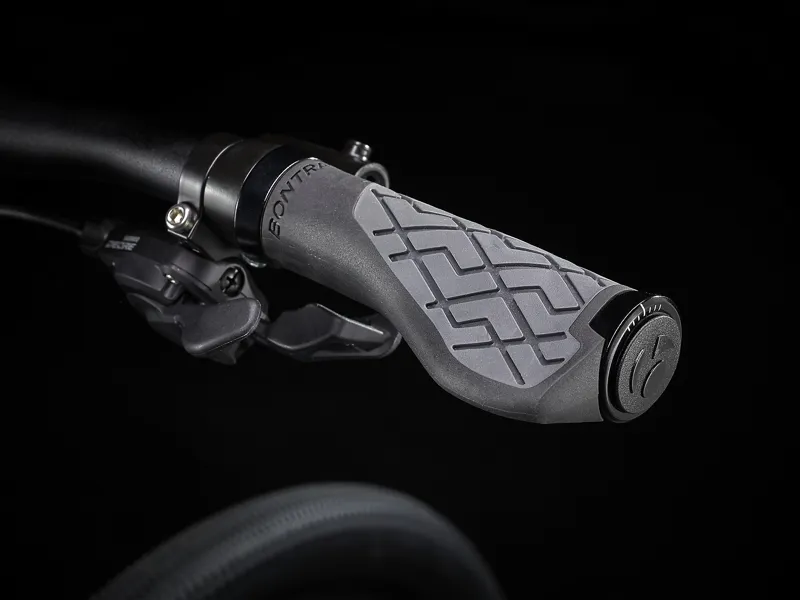

Grips
Bontrager XR Endurance Elite, lock-on, ergonomic
Stem
Size: S, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: M/L, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: XL, Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length
Head set
1-1/8" threadless, sealed cartridge bearings

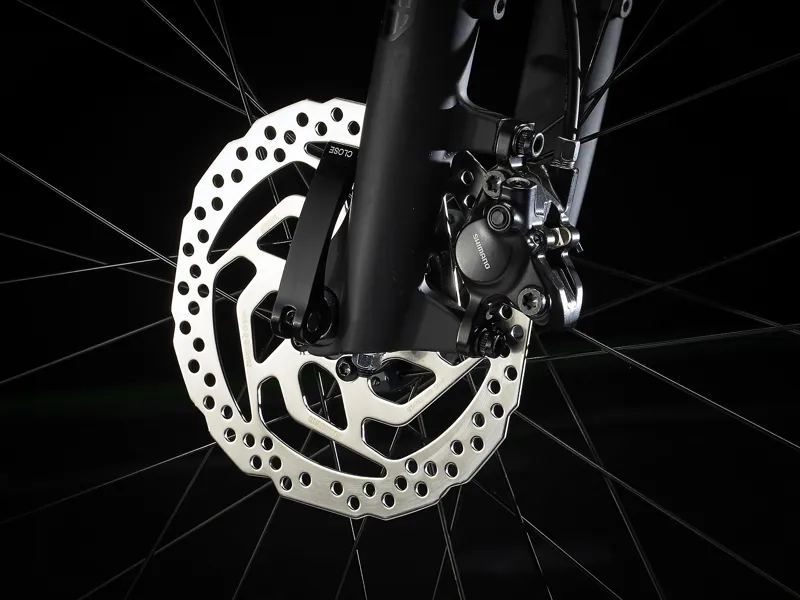

Brake
Shimano MT200 hydraulic disc
Brake rotor
Shimano RT26, 6-bolt,160 mm
Weight
M - 28.68 lb / 13.01 kg
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
