Frame
Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, rack and mudguard mounts, post-mount disc, kickstand mount, 135x5 mm QR
Fork

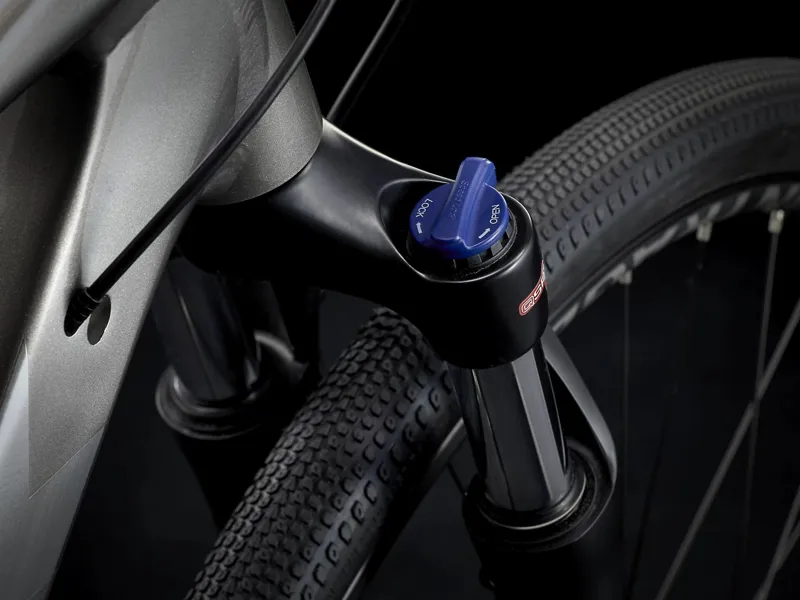

SR Suntour NEX, coil spring, preload, hydraulic lockout, 100x5 mm QR, 63 mm travel
Front hub
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Rear hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR

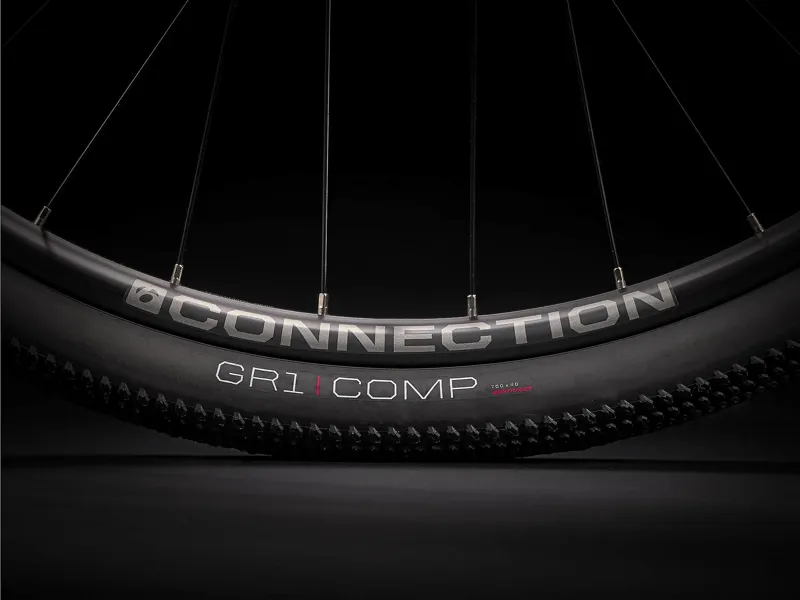

Rim
Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve
Spokes
14 g stainless steel, black
Tyre
Bontrager GR1 Comp, wire bead, 60 tpi, 700x40 c
Shifter
Size: S/M/L/XL, Shimano Altus M315, 8-speed
Size: S/M/L/XL, Shimano Altus M315, 2-speed
Front derailleur
Shimano Tourney TY710, 34.9 mm clamp, top-swing, dual pull
Rear derailleur
Shimano Acera M360, long cage

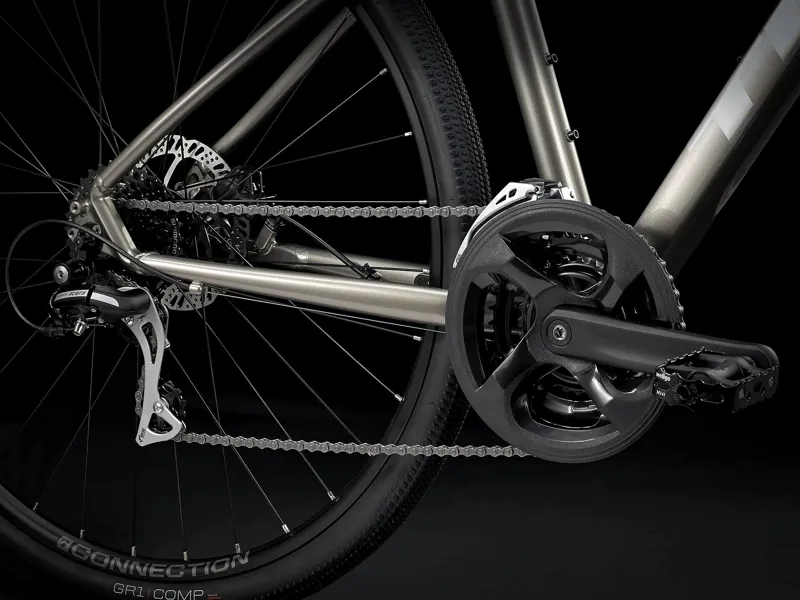

Crank
Forged alloy, 48/38/28, chainguard, 170 mm length
Bottom bracket
VP BC73, 73 mm, threaded
Cassette
Shimano HG31, 11-32, 8-speed
Chain
KMC Z8.3
Pedal
Wellgo M141, resin body, alloy cage
Saddle
Bontrager Sport
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

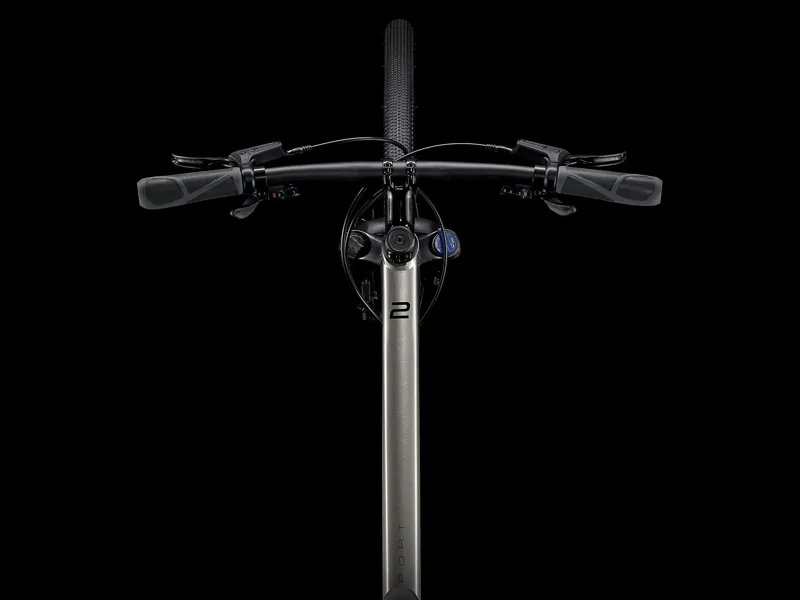

Handlebar
Size: S/M, Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width
Size: L/XL, Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width

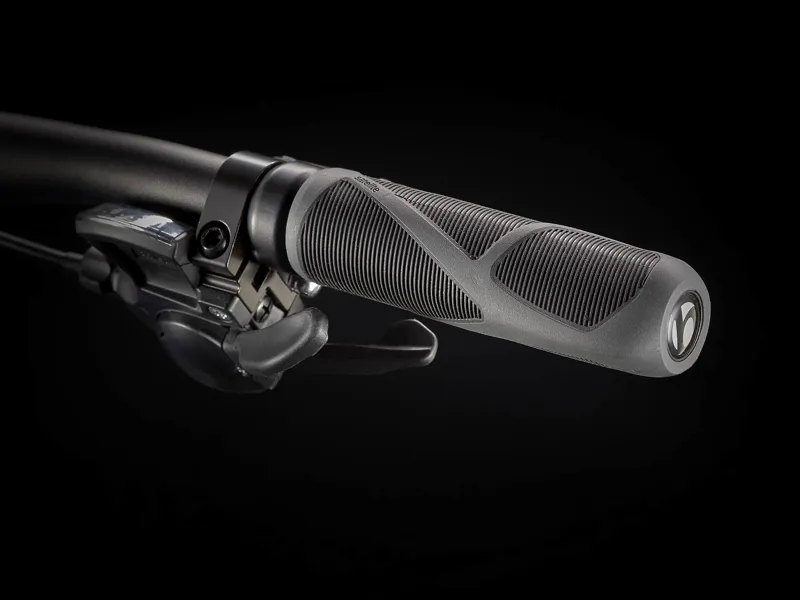

Grips
Bontrager Satellite
Stem
Size: S, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: M/L, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: XL, Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length
Head set
1-1/8" threadless, sealed cartridge bearings
Brake
Tektro HD-M275 hydraulic disc
Weight
M - 13.18 kg / 29.05 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
